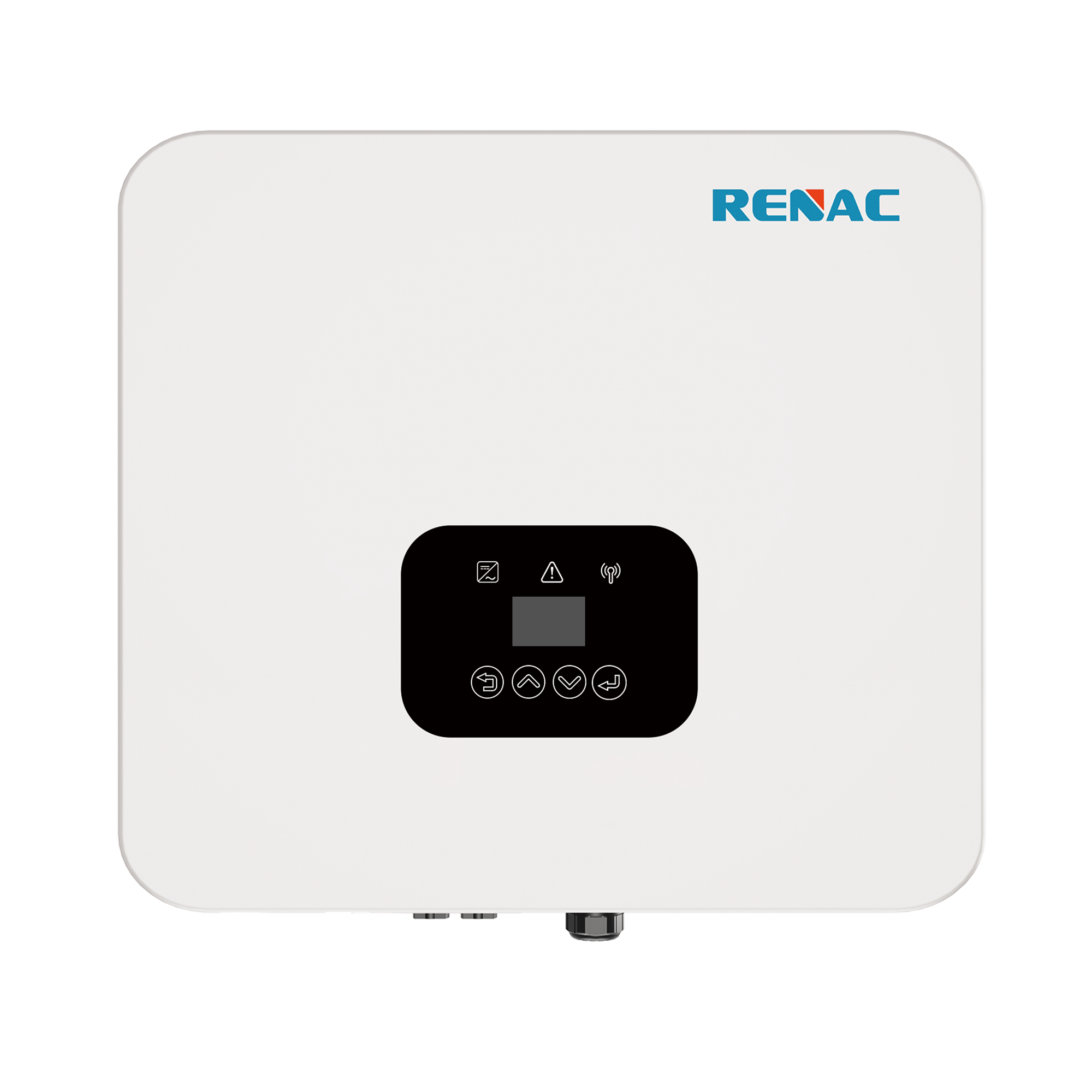

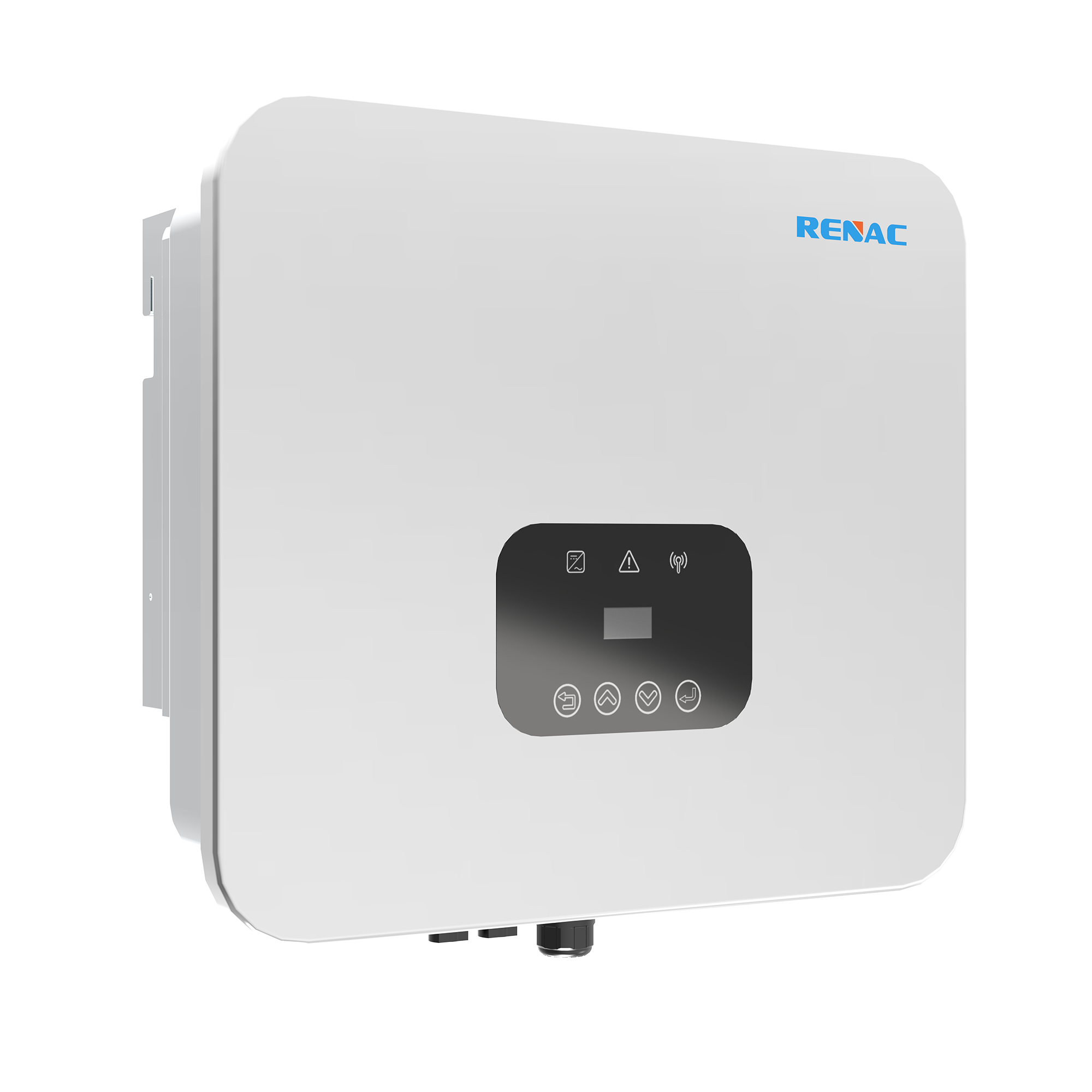

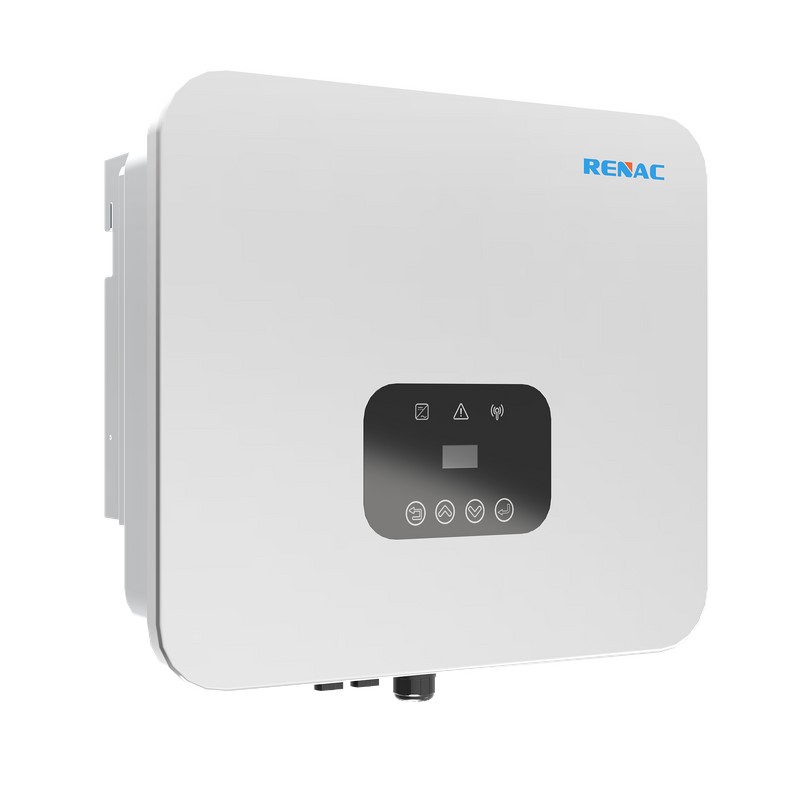

On-Grid Inverter R3 Note

6kW / 8kW / 10kW / 12kW | Three Phase, 2 MPPTS

RENAC R3 Note Series inverter is one of the best options available in the residential and commercial sectors by its technical strengths, which makes it be one of the most productive inverters in the market. With the high efficiency of 98.5%, enhanced oversizing and overloading capabilities,R3 Note Series represents an outstanding improvement in the inverter industry.

Model:
R3 Note


Availability:



Inquire Add to Basket

Product Features

6kW / 8kW / 10kW / 12kW | Three Phase, 2 MPPTS

RENAC R3 Note Series inverter is one of the best options available in the residential and commercial sectors by its technical strengths, which makes it be one of the most productive inverters in the market. With the high efficiency of 98.5%, enhanced oversizing and overloading capabilities,R3 Note Series represents an outstanding improvement in the inverter industry.

16A

Max. PV

input current
AFCI

Optional AFCI

protection function
150%

150% PV

input oversizing

Export control function integrated
Wider MPPT voltage range(140 ~ 1000V)
Type II SPD for both DC and AC
Remote firmware upgrade & setting

Parameter List

Model	R3-6K	R3-8K	R3-10K	R3-12K
Max. PV Input Voltage[V]	1100
Max. PV Input Current [A]	16/16
No.of MPPT Trackers/No.of Input Strings per Tracker	2/1
Max. AC Output Apparent Power [VA]	6600	8800	11000	13200
Max.Efficiency	98.4%	98.5%	98.5%	98.5%
