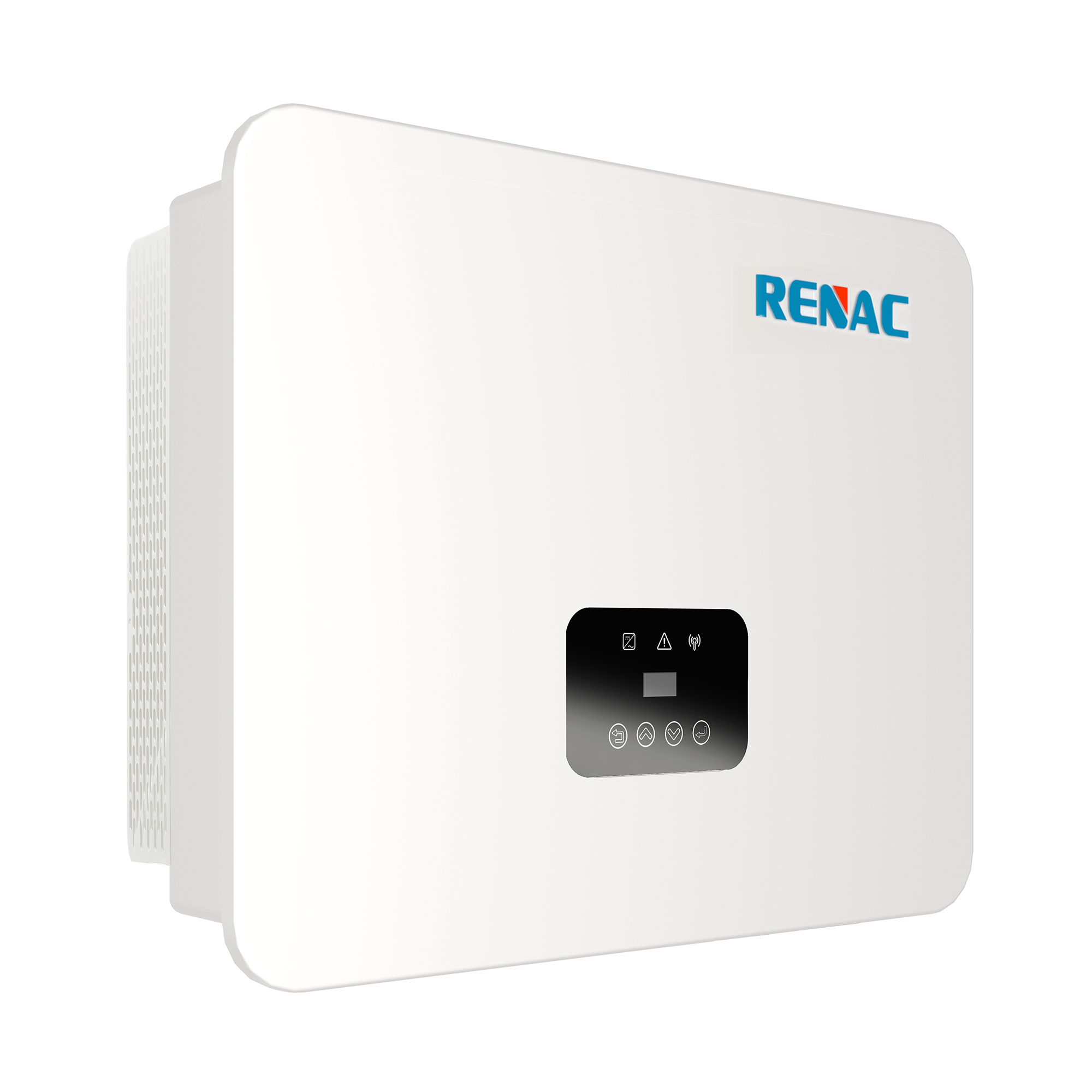

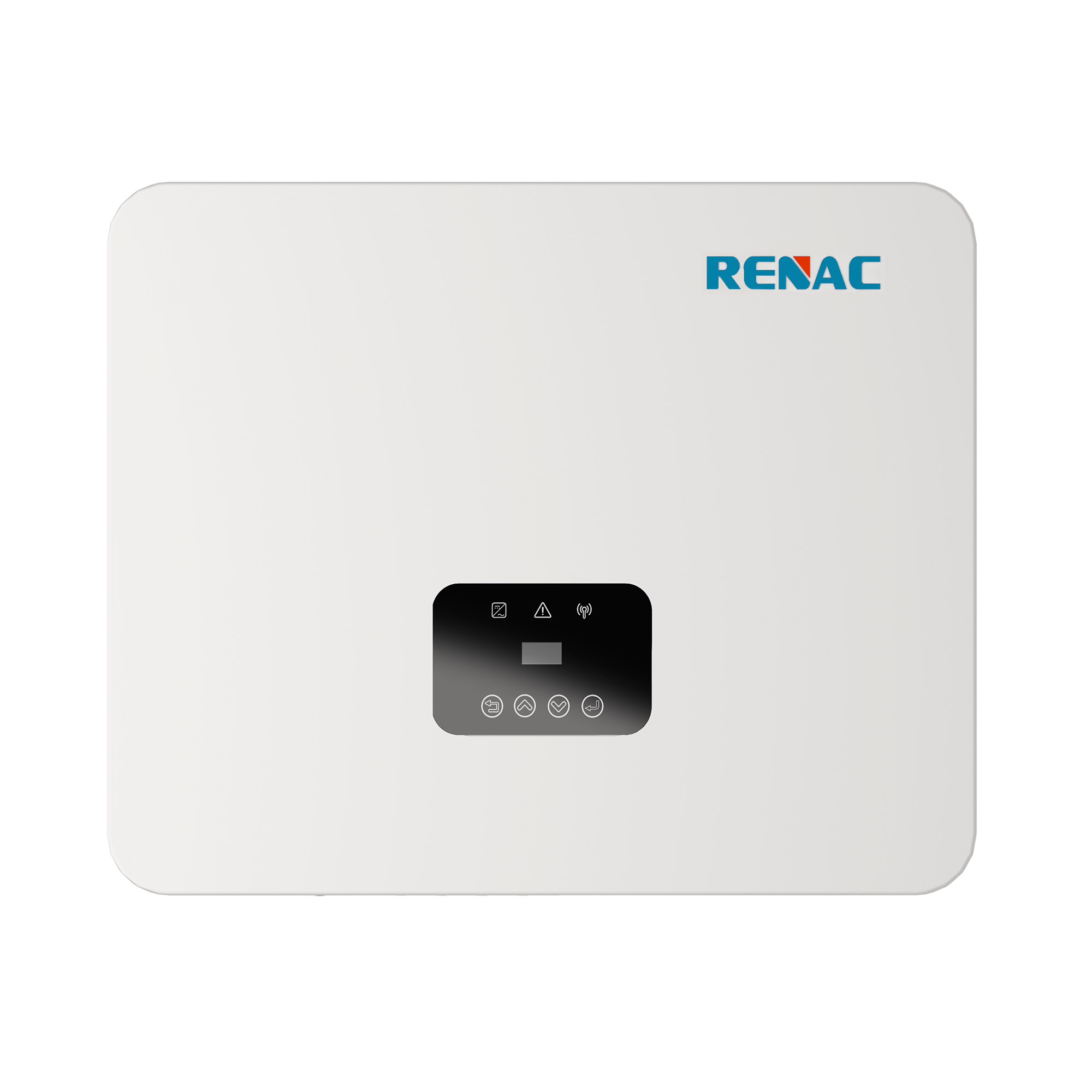

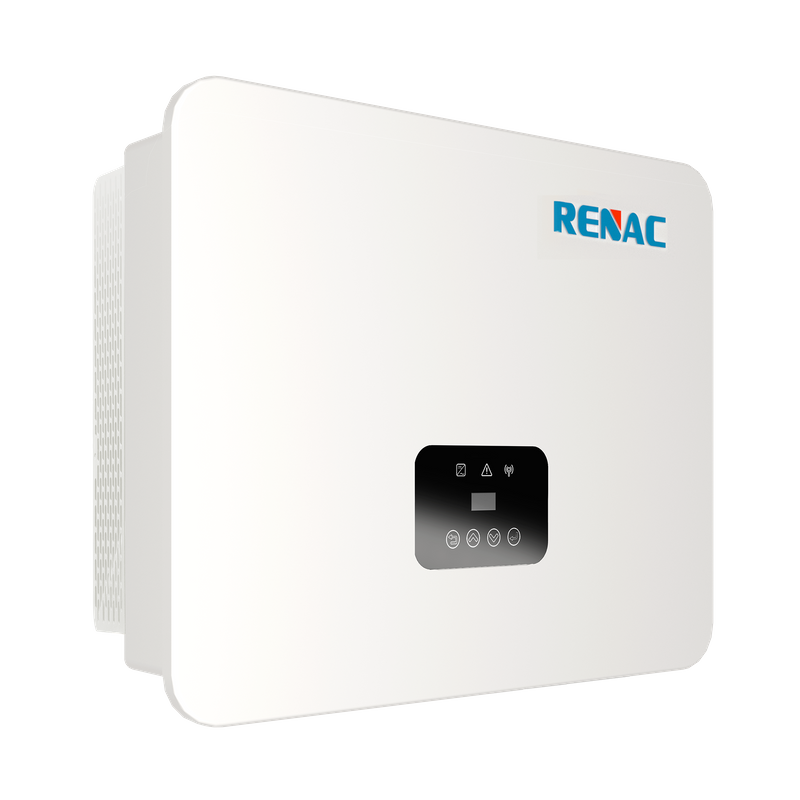

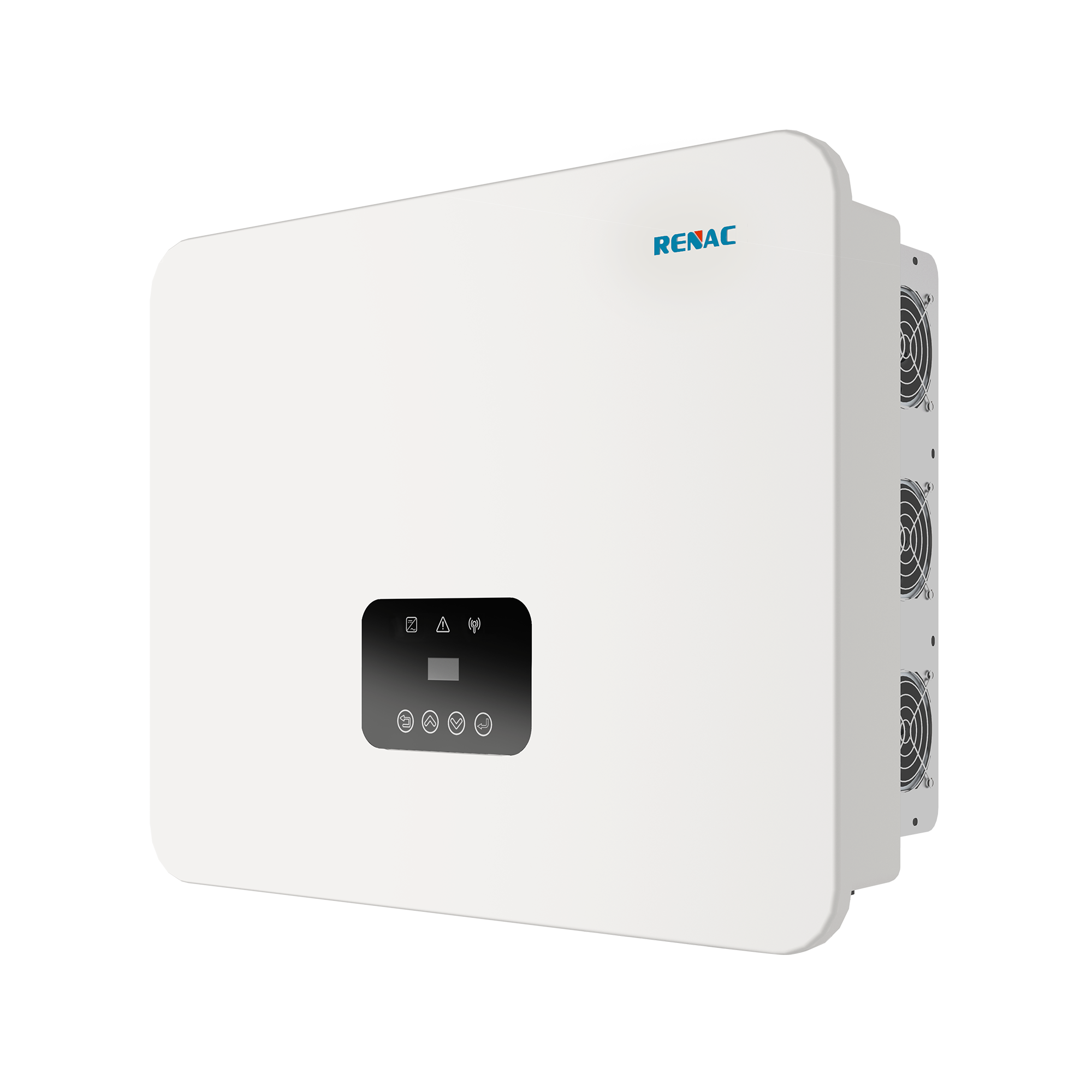

R3 Navo
Product Features
RENAC R3 Navo Series inverter is especially designed for small industrial and commercial projects. With fuse free design, optional AFCI function and other multiple protections, it ensures higher safety level of operation. With a max. efficiency of 98.8%, a maximum DC input voltage of 1100V, wider MPPT rangeand a lower start-up voltage of 200V, it guarantees an earlier generation of power and a longer working time. With an advanced ventilation system, the inverter is dissipated heat efficiently.
Max. PV
input current
Optional AFCI
protection function
Low start-up
voltage at 200V
Export control function integrated
150% PV input oversizing & 110% AC overloading
Type II SPD for both DC and AC
String monitoring and shorter O&M time
Parameter List
| Model | R3-30K | R3-40K | R3-50K |
| Max. PV Input Voltage[V] | 1100 | ||
| Max. PV Input Current [A] | 40/40/40 | 40/40/40/40 | 40/40/40/40 |
| No.of MPPT Trackers/No.of Input Strings per Tracker | 3/2 | 4/2 | |
| Max. AC Output Apparent Power [VA] | 33000 | 44000 | 55000 |
| Max.Efficiency | 98.6% | 98.8% | |
