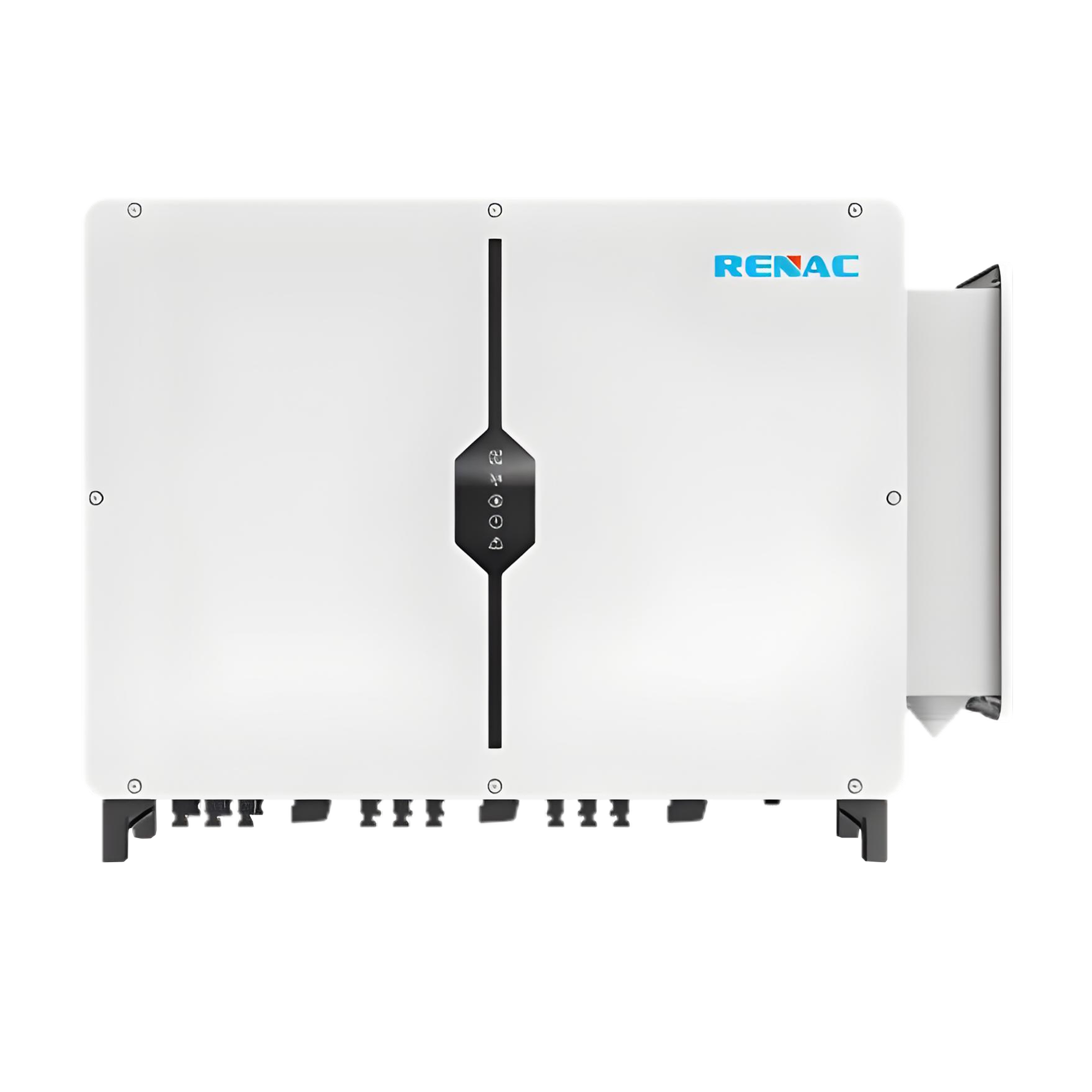

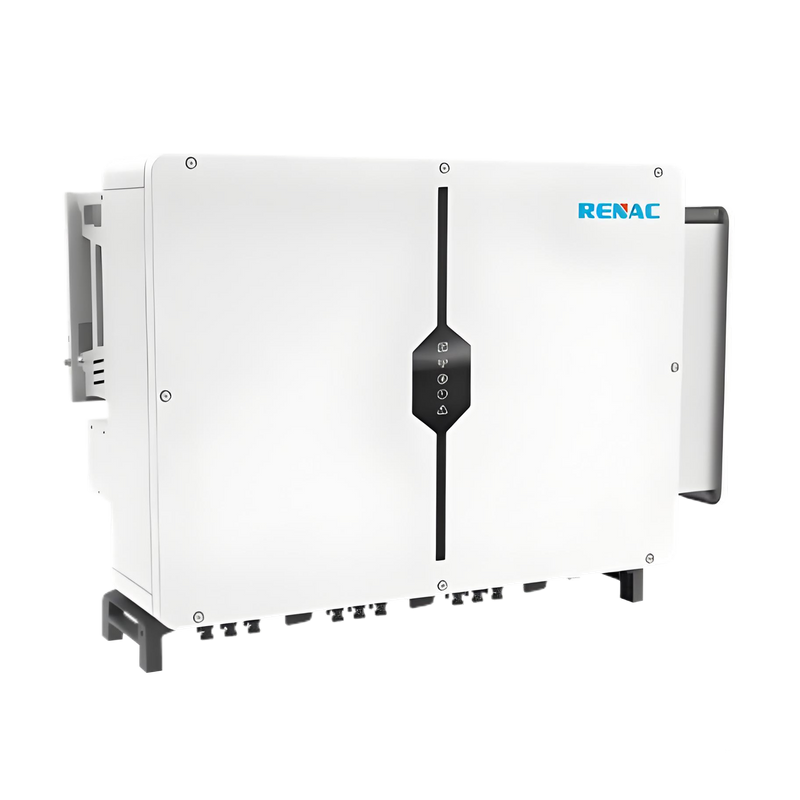

R3 Max
Product Features
PV inverter R3 Max series, a three-phase inverter compatible with large capacity PV panels, is widely applied for distributed commercial PV systems and large-scale centralized PV power plants. it is equipped with IP66 protection and reactive power control. It supports high efficiency, high reliability, and easy installation.
Max. PV
input current
Optional AFCI & Smart
PID recovery function
Outdoor design
Export control function integrated
150% PV input oversizing & 110% AC overloading
Type II SPD for both DC and AC
String monitoring and shorter O&M time
Parameter List
| Model | R3-100K | R3-110K | R3-125K |
| Max. PV Input Voltage[V] | 1100 | ||
| Max. PV Input Current Per MPPT [A] | 32 | ||
| No.of MPPT Trackers/No.of Input Strings per Tracker | 9/2 | ||
| Max. AC Output Apparent Power [VA] | 11000 | 121000 | 125000 |
| Max.Efficiency | 98.7% | ||
