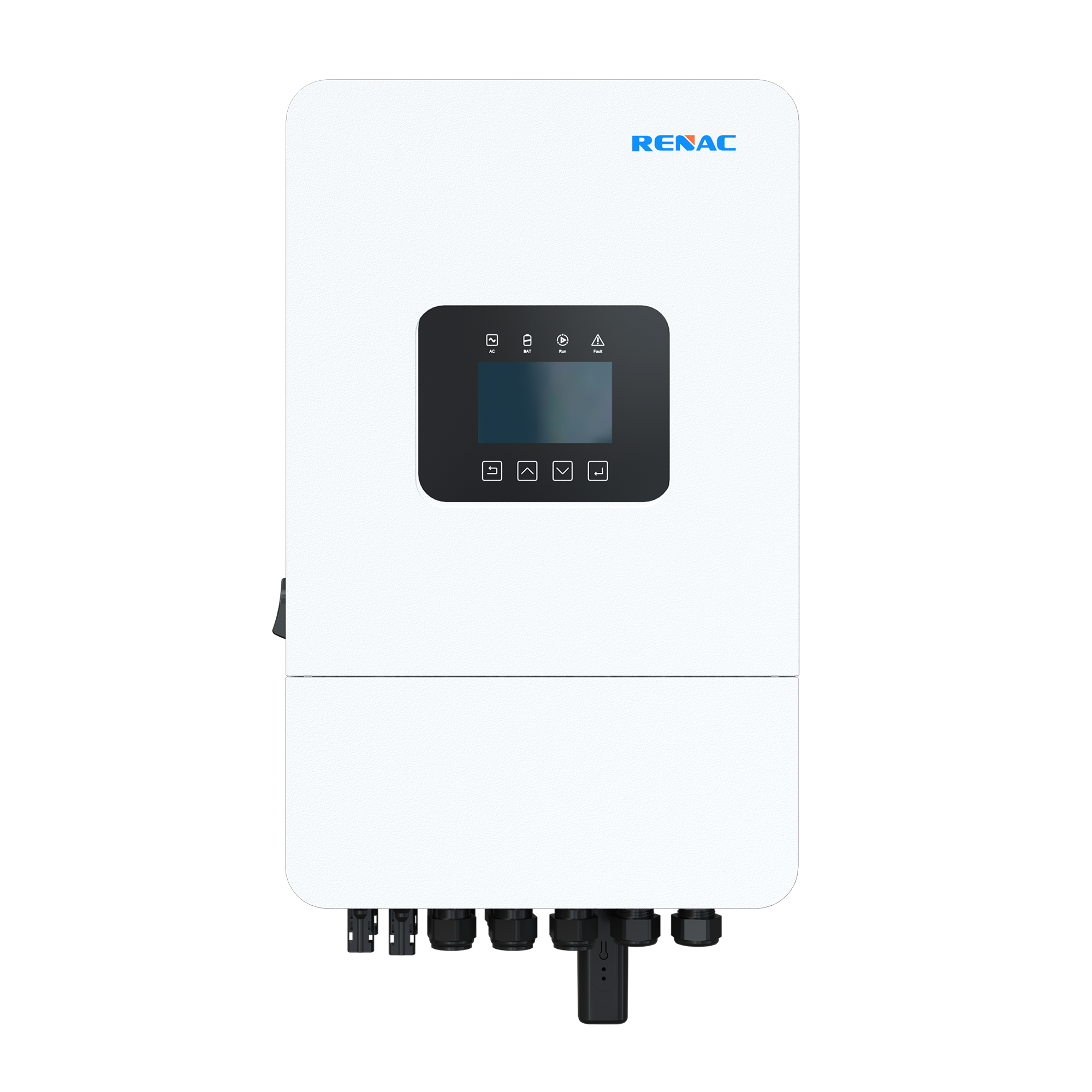

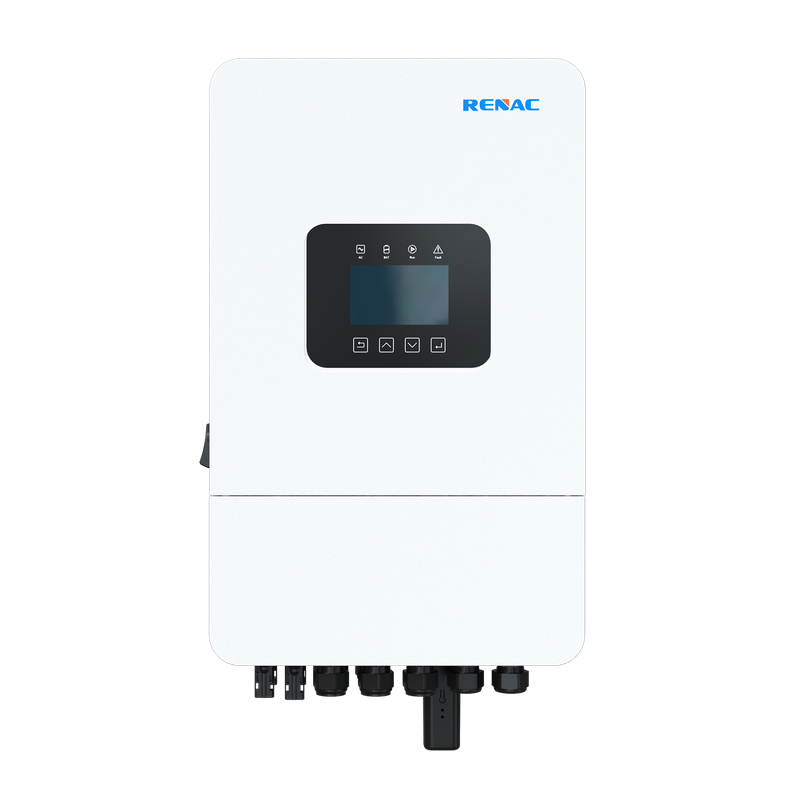

N1 LV
Product Features
N1 LV series single phase low-voltage hybrid inverter comes with 150% PV oversizing, high power input, and flexible compatibility with multiple battery types. Experience UPS-level transfer time, EPS output of up to 200% for 5s, and compatibility with generator. This series features a 16A DC single string input current supporting high-power solar panels. It also support Max.6 units parallel connection in single phase or three-phase system.
Max. PV
input current
Transfer time
Supports diesel generator
and smart load integration
Supports AC coupling for easy system expansion
Max. charging / discharging current up to 190A
200%PV input oversizing
10 seconds of 200% overload capability
Parameter List
| Model | N1-LV-4K | N1-LV-5K | N1-LV-6K | N1-LV-8K |
| Max. PV Access Power [Wp] | 8000 | 10000 | 12000 | 16000 |
| Max. PV Input Current [A] | 20/20 | 40 / 40 | ||
| Max. AC Output Apparent Power [VA] | 4400 | 5500 | 6600 | 8800 |
| Max. Charging / Discharging Current [A] | 100 | 100 | 120 | 190 |
| Rated Output Power [W] | 4000 | 5000 | 6000 | 8000 |
| Peak Apparent Power, Duration [VA, s] | 2 times of rated power, 10s | |||
