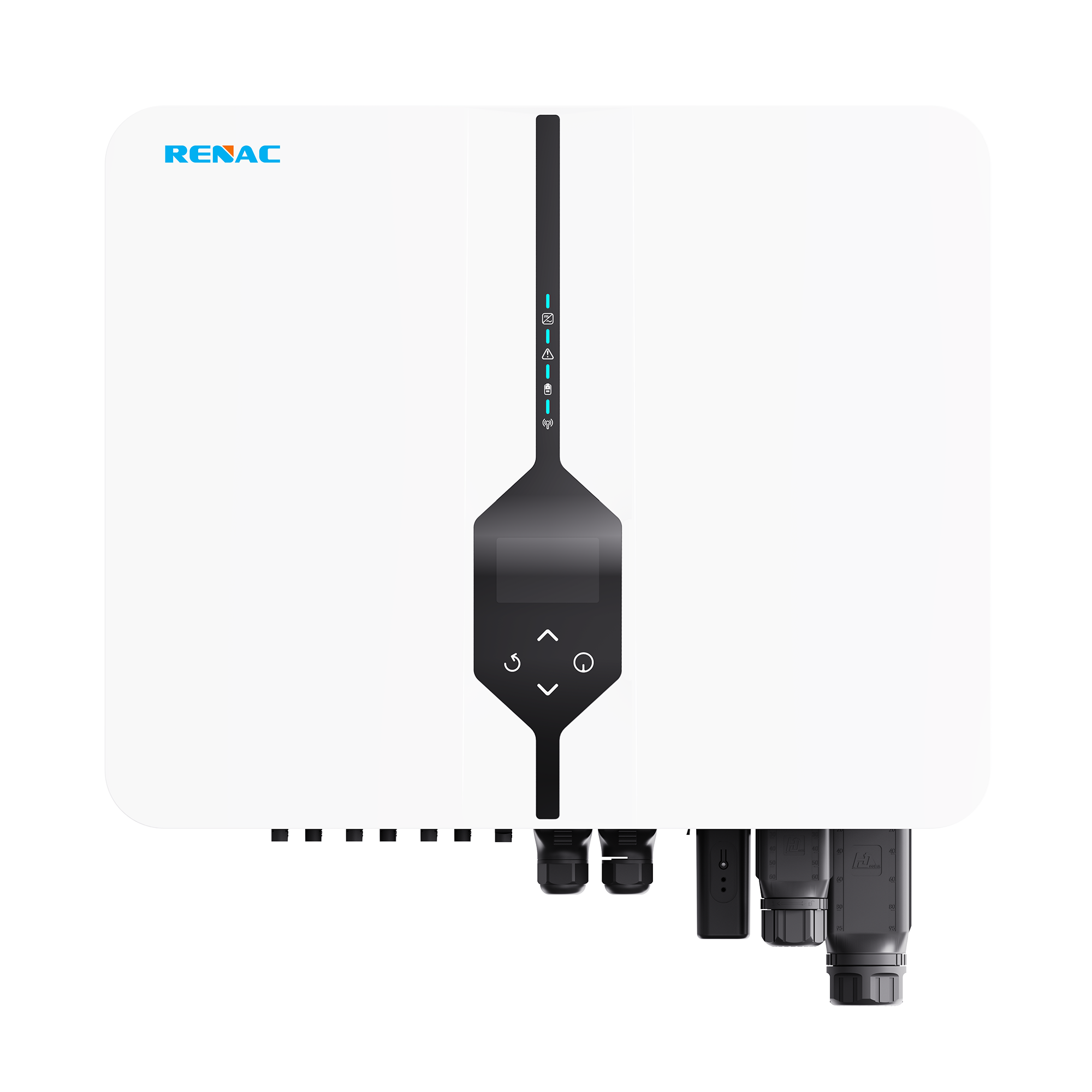

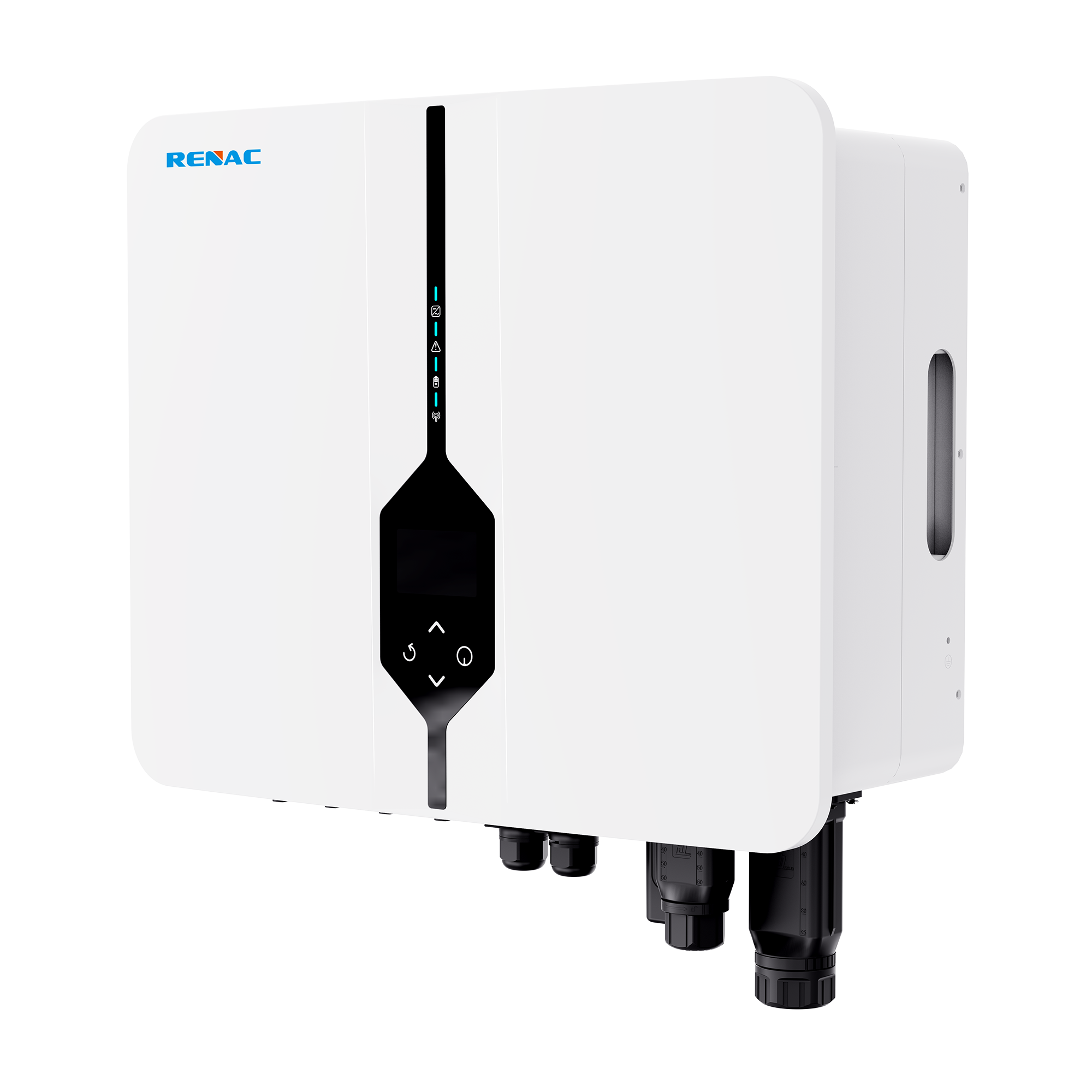

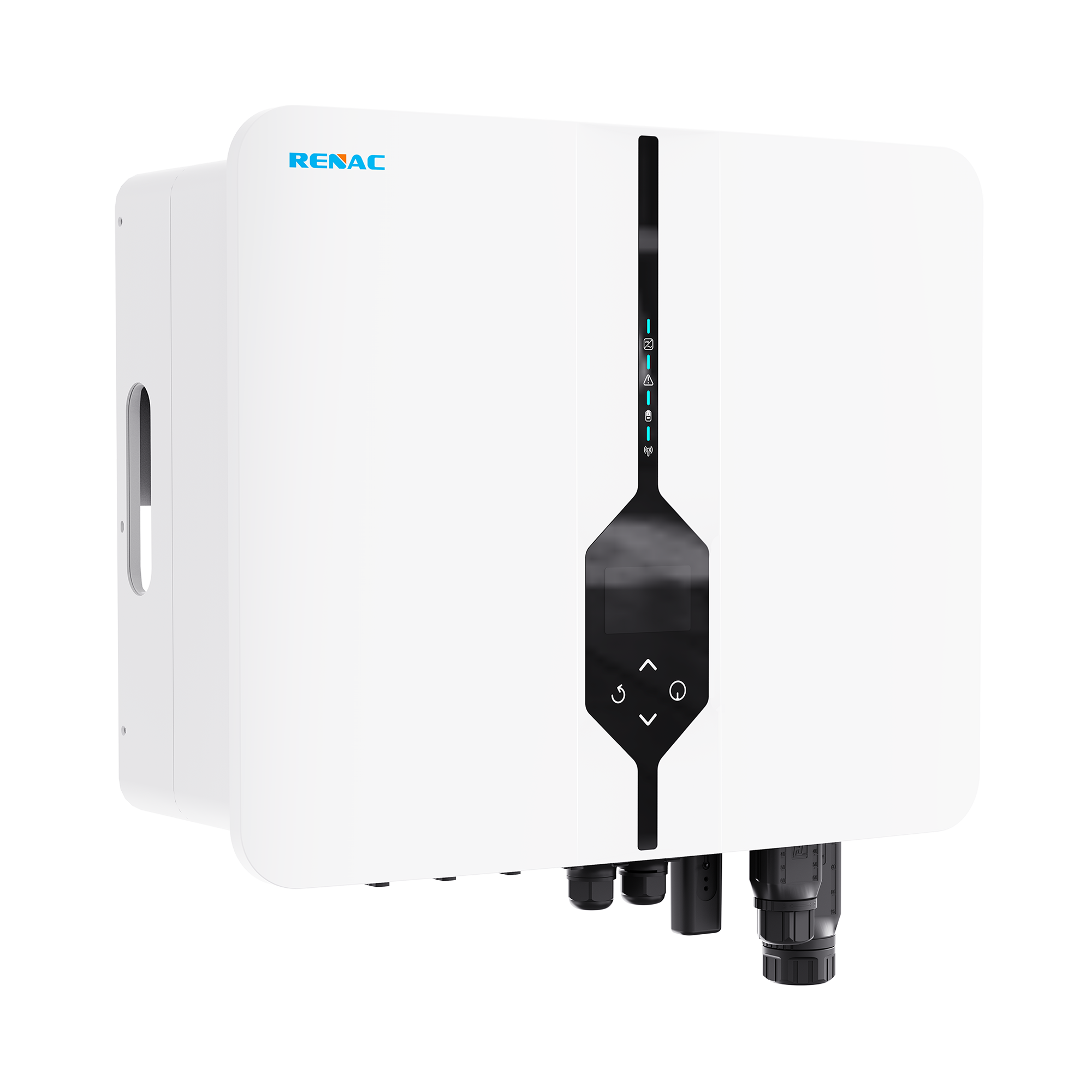

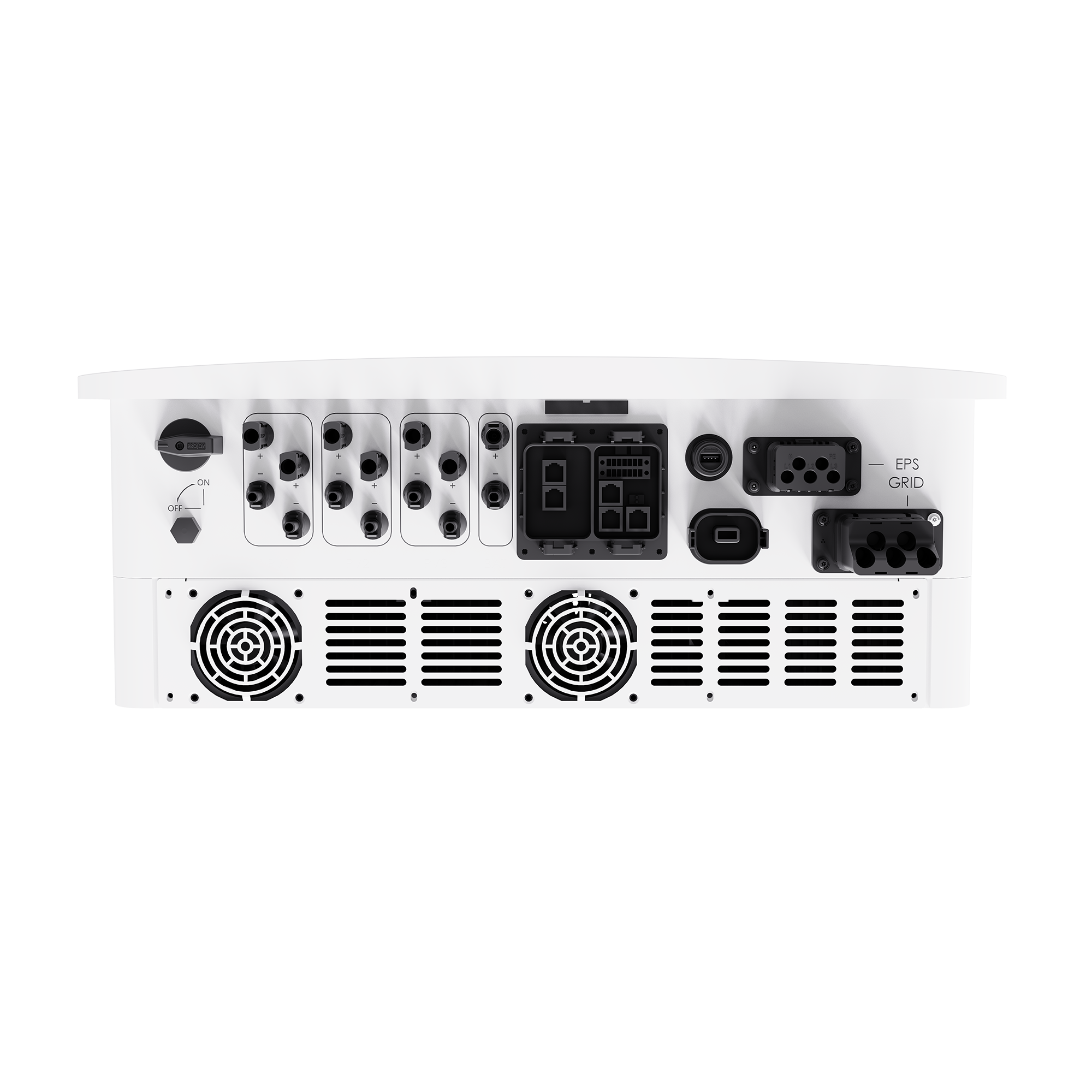

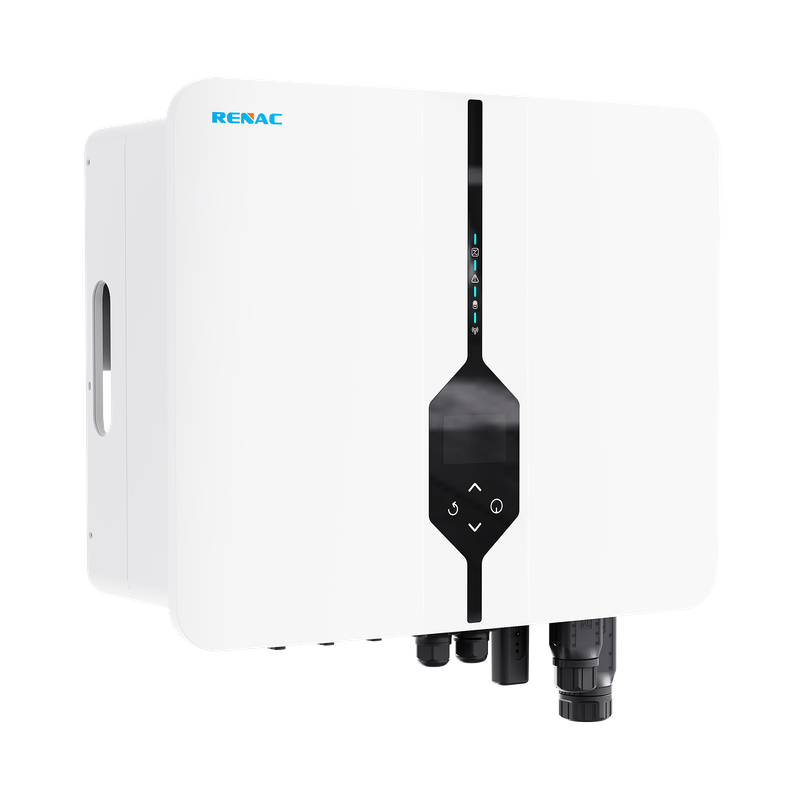

N3 Plus
Product Features
The N3 Plus series of three-phase high-voltage energy storage inverters supports parallel connection, making it suitable not only for residential homes but also for C&I applications. By leveraging peak shaving and valley filling of electrical energy, it can reduce electricity costs and achieve highly autonomous energy management. Flexible PV input with three MPPTs , and the switchover time is less than 10 milliseconds. It supports AFCI protection and standard TypeⅡ DC/AC surge protection, ensuring safe electricity usage.
Max. PV
input current
Transfer time
Unbalanced Loads
IP66 outdoor design
Generator-compatible to extend backup
110% AC overloading
Support AC retrofit application
Parameter List
| Model | N3-15K | N3-20K | N3-25K | N3-30K |
| Max. PV Input Current [A] | 36 / 36 / 36 | |||
| Max. AC Output Apparent Power [VA] | 16500 | 22000 | 27500 | 33000 |
| Battery Voltage Range [V] | 180 ~ 800 | |||
| Max. Charging / Discharging Current [A] | 50 / 50 | |||
| Back-up Rated Apparent Power [W] | 15000 | 20000 | 25000 | 30000 |
| Back-up Peak Apparent Power, Duration [VA, s] | 22500, 10 | 30000, 10 | 37500, 10 | 45000, 10 |
