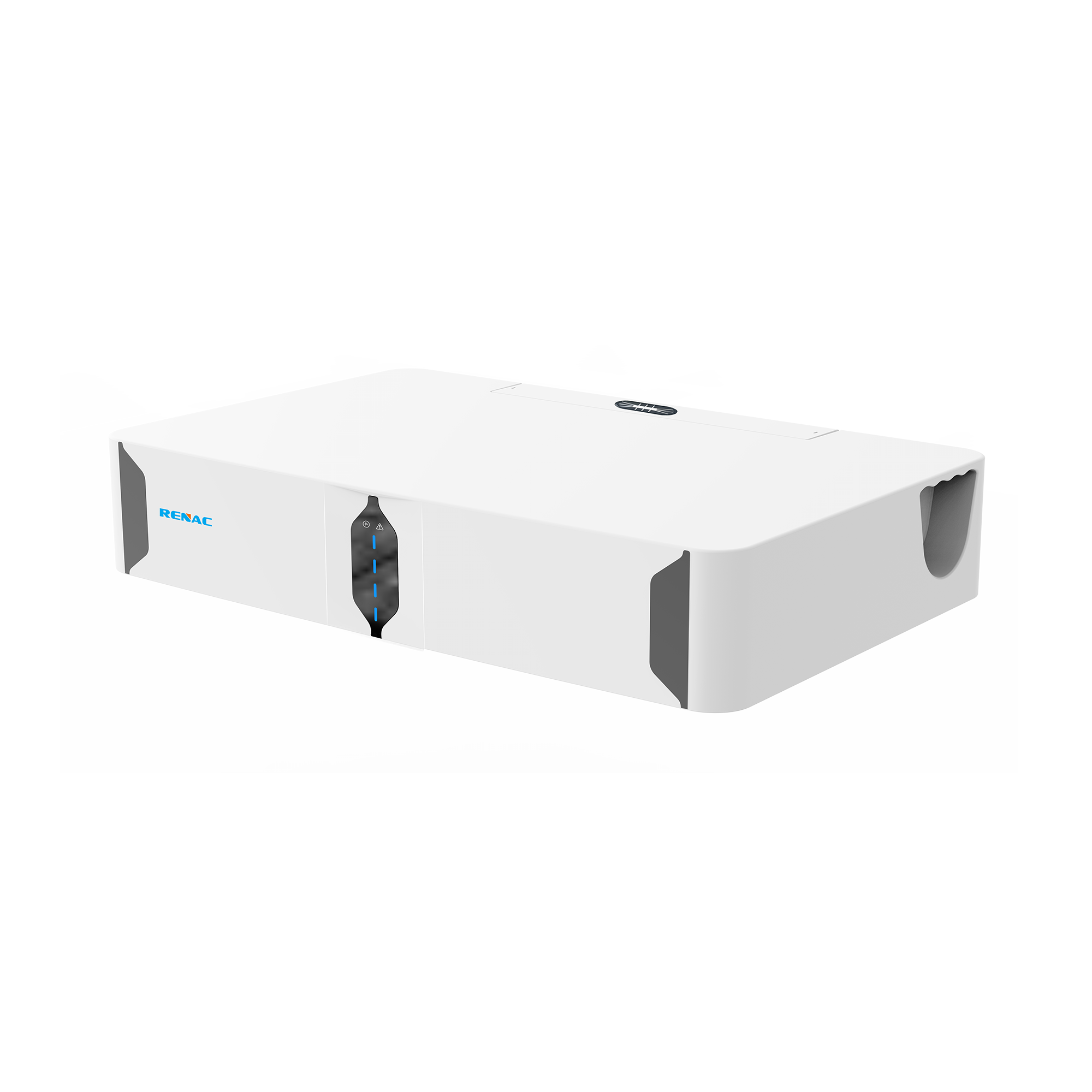

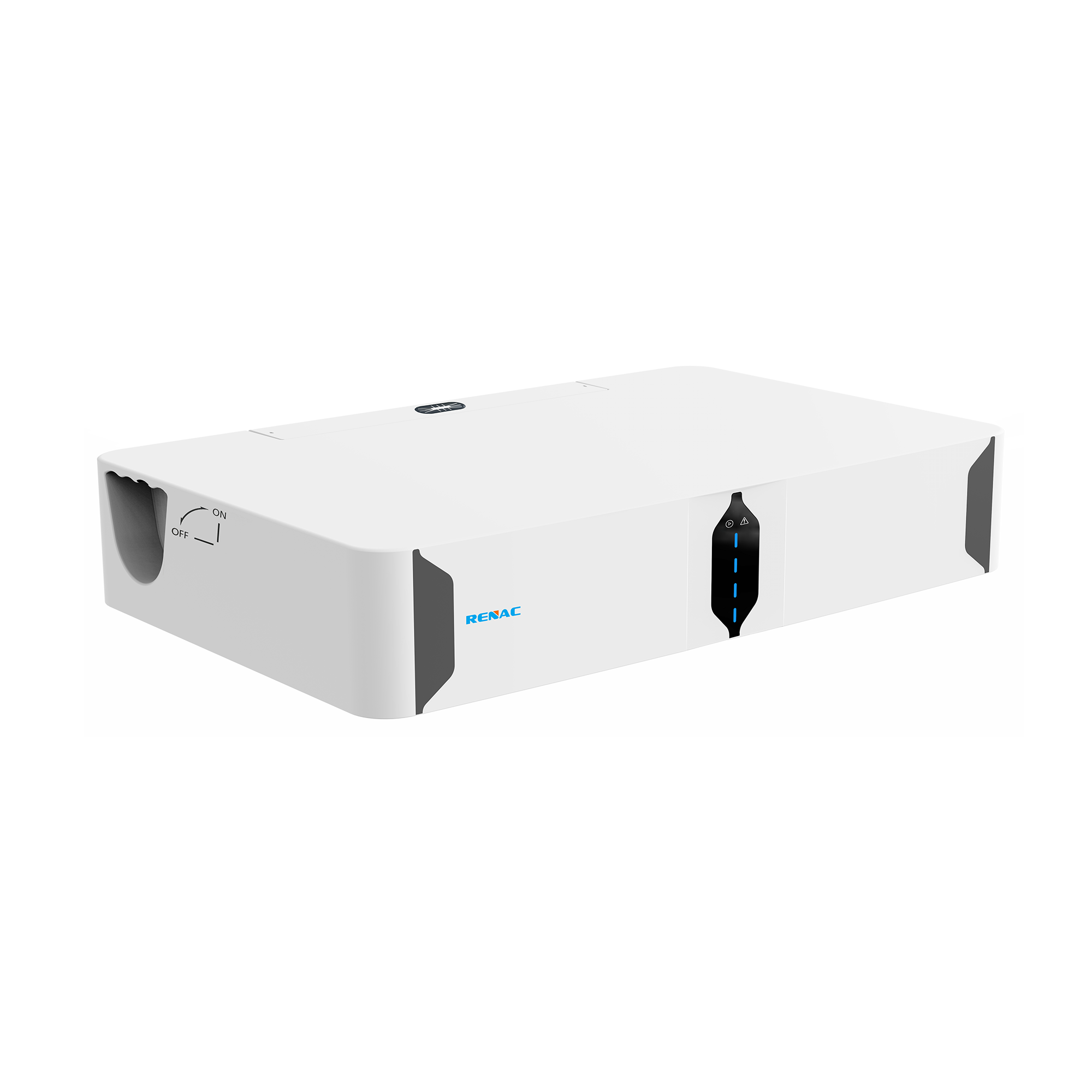

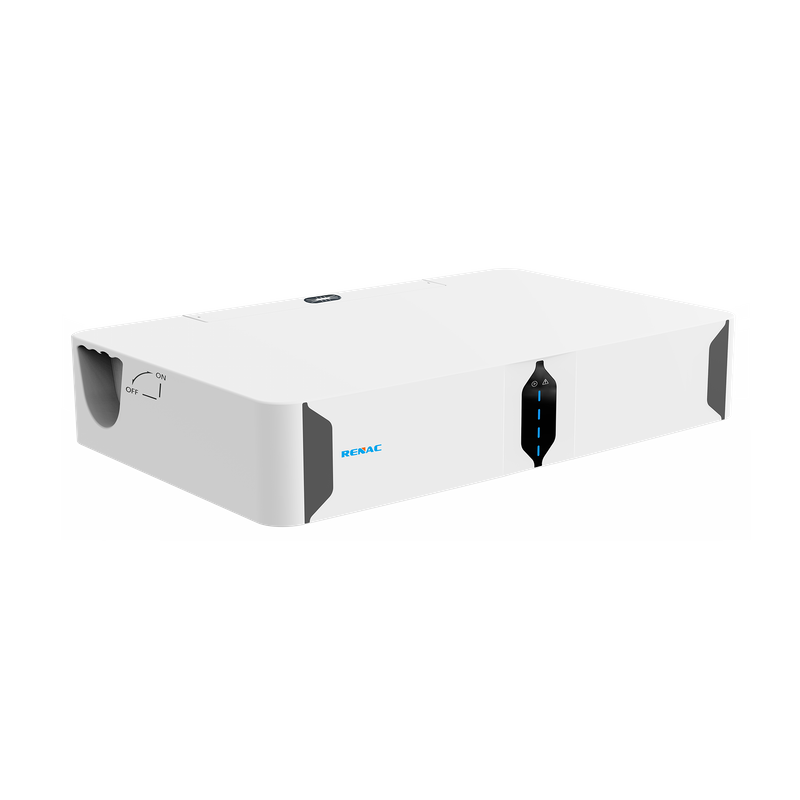

High Voltage Battery Turbo H5 BMC

30kWh / 35kWh / 40kWh / 45kWh / 50kWh / 55kWh / 60kWh

The Turbo H5 series is a high-voltage lithium storage battery developed specifically for large residential applications. It features a modular adaptive stacking design, allowing for a maximum battery capacity expansion of up to 60kWh, and supporting a maximum continuous charge and discharge current of 50A. It is fully compatible with RENAC N1 HV/N3 HV/N3 Plus hybrid inverters.

Model:
Turbo H5 BMC


Availability:



Inquire Add to Basket

Product Features

30kWh / 35kWh / 40kWh / 45kWh / 50kWh / 55kWh / 60kWh

The Turbo H5 series is a high-voltage lithium storage battery developed specifically for large residential applications. It features a modular adaptive stacking design, allowing for a maximum battery capacity expansion of up to 60kWh, and supporting a maximum continuous charge and discharge current of 50A. It is fully compatible with RENAC N1 HV/N3 HV/N3 Plus hybrid inverters.

50A

Max. charging /

discharging current
>6000

Cycle life times
IP65

IP65 outdoor design

Stackable modules, plug & play design
Battery module level emergency protection
Flexible capacity options
Remote firmware upgrade and diagnosis via inverter

Parameter List

Mode	TB-H5-30	TB-H5-35	TB-H5-40	TB-H5-45	TB-H5-50	TB-H5-55	TB-H5-60
Number of Modules	6	7	8	9	10	11	12
Nominal Energy[kWh]	30.72	35.84	40.96	46.08	51.2	56.32	61.44
Nominal Voltage[V]	307.2	358.4	409.6	460.8	512	563.2	614.4
Max.Continuous Charging/ Discharging Current[A]	50/50
Ingress Protection	IP65
