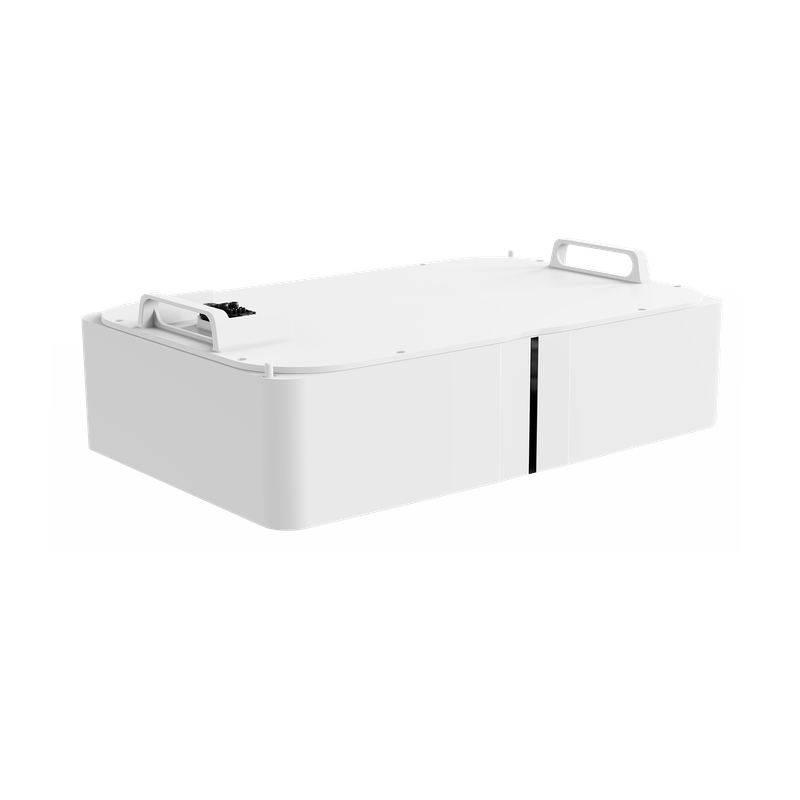

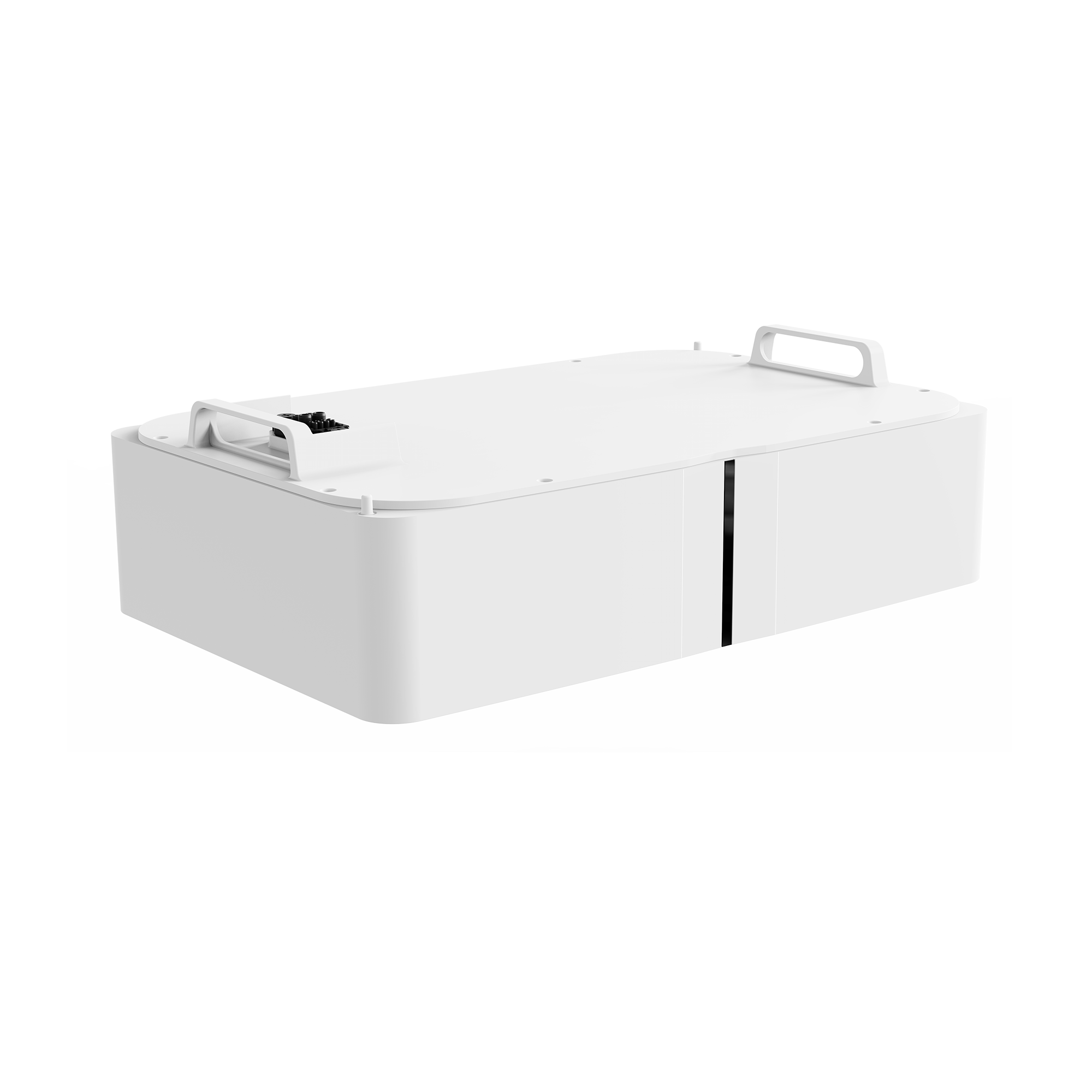

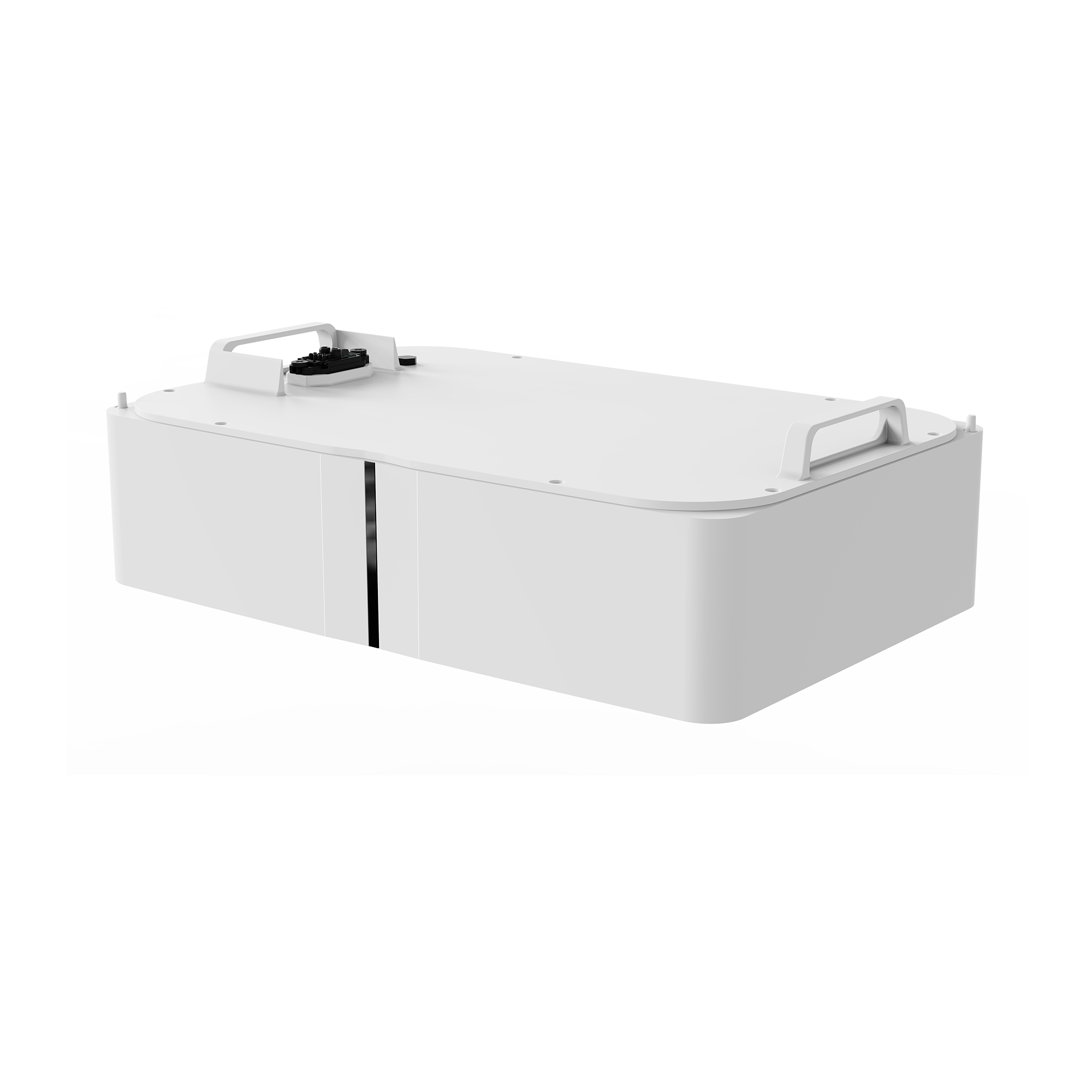

Turbo H4 RBS
Product Features
The Turbo H4 series is a high-voltage liThe Turbo H4 series is a high-voltage lithium storage battery developed specifically for large residential applications. It features a modular adaptive stacking design, allowing for a maximum battery capacity expansion of up to 30kWh. The reliable Lithium Iron Phosphate (LFP) battery technology ensures maximum safety and a longer lifespan. It is fully compatible with RENAC N1 HV/N3 HV/N3 Plus hybrid inverters.
Max. charging /
discharging current
Cycle life times
Stackable modules, plug & play design
High charging / discharging rate
Flexible capacity options
Remote firmware upgrade and diagnosis via inverter
Parameter List
| Mode | TB-H4-5 | TB-H4-10 | TB-H4-15 | TB-H4-20 | TB-H4-25 | TB-H4-30 |
| Number of Modules | 1 | 2 | 3 | 4 | 5 | 6 |
| Nominal Energy[kWh] | 5 | 10 | 15 | 20 | 25 | 30 |
| Nominal Voltage[V] | 96 | 192 | 288 | 384 | 480 | 576 |
| Max.Continuous Charging/ Discharging Current[A] | 30/30 | |||||
| Ingress Protection | IP65 | |||||
